Precision Aluminum CNC Machining & 6262 Turning Services
CNCALPARTS is a precision machine shop in Shenzhen, China, dedicated exclusively to aluminum CNC machining. Our focused expertise helps manufacturers achieve reliable tolerances, clean threads, and consistent surface finishes across prototypes, low-volume runs, and batch production.
±0.01 mm
Tolerance capability
3–5 Axis
CNC milling capacity
6262 Focus
Free-machining alloy expertise
Applications
Robotics, automation, electronics
Production
Prototype to batch production
Material expertise
Why Aluminum 6262 performs well in precision parts
Aluminum 6262 is engineered with lead and bismuth additions that improve chip breaking and surface finish during high-speed machining. We use the alloy’s free-machining behavior to support efficient turning, turn-mill work, and repeatable production of small mechanical components.
Precision turning
Controlled chip evacuation supports high-speed CNC turning and turn-mill operations.
Thread integrity
Clean, accurate threads for connectors, fasteners, pins, and other compact parts.
Surface finish
A strong as-machined finish option for parts with cosmetic or functional requirements.
Batch consistency
Stable machining behavior helps maintain repeatability across large runs of small parts.
CNC capabilities
Machining capacity built around aluminum
Our 3-axis, 4-axis, and 5-axis equipment is optimized for aluminum alloys, from detailed prototypes to production programs requiring stable cycle times and repeatable quality.
| Capability | Specifications |
|---|---|
| Primary Material | Aluminum alloys only: 6061, 6063, 6082, 7075, 2024, 5052, 5083, 6262 |
| Milling | 3-axis, 4-axis, 5-axis |
| Turning | CNC turning and turn-mill |
| Maximum Milling Size | 1000 × 600 × 500 mm |
| Maximum Turning Diameter | Ø300 mm |
| Tolerance | Down to ±0.01 mm |
| Surface Roughness | Ra 0.8–3.2 μm |
| Minimum Wall Thickness | 0.5 mm |
| Minimum Hole Diameter | Ø1.0 mm |

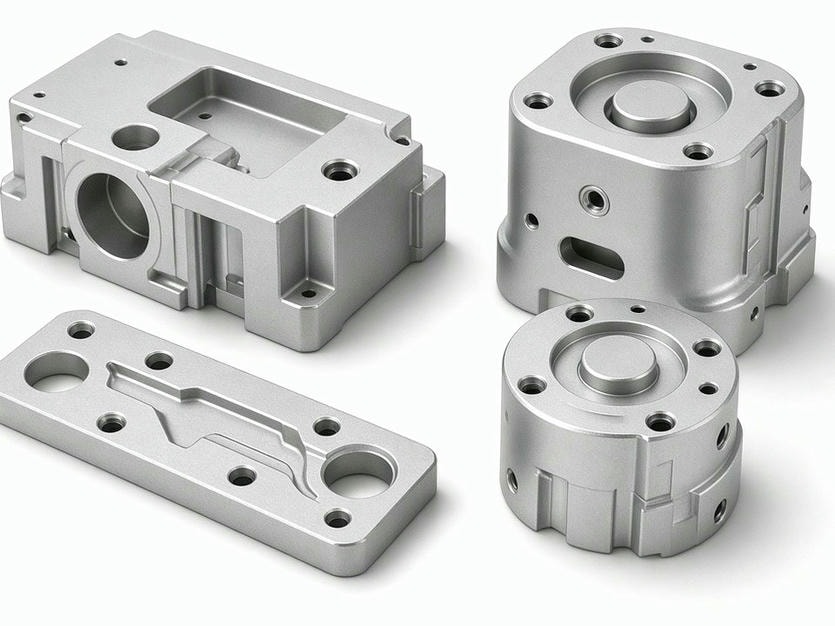

Built for demanding components
From precision turned parts to complex housings
Enclosures and housings
Precision-fitted housings for electronics and industrial controllers.
Heat sinks
Cooling plates and complex fin designs for thermal management.
Structural components
Brackets, frames, and plates for robotics and automation systems.
6262 turned parts
Fasteners, spacers, shafts, and connector bodies with clean threads.
Optical mounts
High-precision components requiring strict flatness and parallelism.
Process control
Engineering discipline for stable aluminum production
Aluminum machining requires careful heat management, chip evacuation, workholding, and stress control. Our aluminum-only focus allows the team to refine these details for each component and production volume.
Deformation control
Specialized workholding and staged machining strategies minimize distortion in thin-wall and deep-pocket parts.
Stress relief
Machining strategies help preserve flatness and parallelism in large plates and structural components.
Cosmetic handling
Controlled handling helps protect finished parts from scratches and dings.
Integrated finishing
Surface treatment options for functional and visual requirements
As machined
Natural finish with controlled tool marks.
Bead blasting
Uniform matte finish, suitable for preparing surfaces for anodizing.
Anodizing
Clear, black, and color anodizing for corrosion resistance and aesthetics.
Hard anodizing
Increased wear resistance and surface hardness for demanding applications.
Secondary finishes
Powder coating, chemical film, and chromate conversion.
Quality assurance
Inspection aligned with your drawings and models
Every project is verified against supplied 3D models, 2D technical drawings, material requirements, and defined tolerances.
-
01
Incoming material inspection
Confirming alloy compliance and material certification.
-
02
In-process inspection
Monitoring critical dimensions during the machining cycle.
-
03
Final inspection
CMMs, height gauges, micrometers, and thread gauges confirm tolerances.
-
04
Inspection reporting
Dimensional Inspection Reports and FAI reports are available upon request.
Why partner with us
A focused partner for your aluminum supply chain
Request a quote
Send your aluminum 6262 project to our engineering team
Provide your 3D models in STEP, STP, or IGS format and 2D technical drawings in PDF format, including defined tolerances and material specifications. We are ready to review your requirements for precision turned parts, connectors, and complex small mechanical components.
