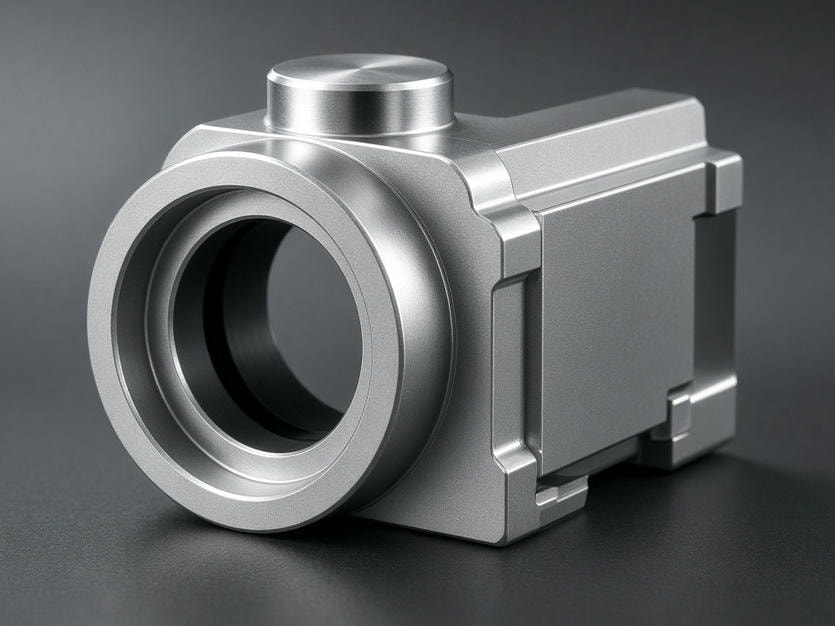

Cosmetic Aluminum Parts for High-End Applications
CNCALPARTS delivers precision CNC aluminum parts where visual quality is as important as dimensional accuracy. Every process is designed around clean surfaces, controlled finishing, and protected delivery.
±0.01 mm
Dimensional tolerance
0.5 mm
Minimum wall thickness
100%
Aluminum focus
Focus
Visible surfaces
Scope
Prototype to production
Material discipline
Aluminum only
We do not process steel, brass, or plastics, helping maintain a clean environment and reduce cross-contamination risk.
Cosmetic control
Appearance by design
Tool paths, workholding, handling, and packaging are coordinated to protect the finished visual surface.
Application fit
Built for visible parts
A practical fit for electronics, instruments, optical equipment, robotics, and automation assemblies.
Cosmetic surface control
The details that define a premium aluminum part
Visible faces on enclosures, housings, and optical mounts require protection at every stage, from cutting strategy through final packing.
Clean tool paths
High-speed, sharp-edged tooling supports chip evacuation and helps prevent tearing. Programming is optimized for uniform, intentional tool marks.
Protected workholding
Custom soft jaws and non-marring fixtures help eliminate clamp marks on critical cosmetic faces.
Controlled finishing
Standardized blasting, monitored anodizing, and selected brushing or polishing create repeatable appearance across batches.
Protected delivery
Glove handling, individual wrapping, and custom trays reduce scratches, dings, and transit damage before assembly.
Finishing expertise
Surface options with process control
Cosmetic aluminum finishing depends on material chemistry, preparation, and consistency. We align the finish to the role of each component.
Discuss your finish requirementsBead blasting +
Standardized media blasting creates a uniform matte finish and helps mask minor machining marks before anodizing.
Clear, black, and custom color anodizing +
Tank chemistry and racking positions are monitored to minimize color variation and maintain consistent coating thickness.
Hard anodizing +
A wear-resistant option for components that still require a controlled, high-quality surface finish.
Brushing and polishing +
Manual and mechanical options support specific aesthetic requirements on structural and visible components.
Technical capability
Capacity for complex designs
Our Shenzhen facility supports modern technology-driven industries from initial prototypes through full-scale production.
| Feature | Specification |
|---|---|
| Material grades | 6061, 6063, 6082, 7075, 2024, 5052, 5083 |
| Tolerance | Down to ±0.01 mm |
| Surface roughness | Ra 0.8–3.2 μm |
| Maximum milling size | 1000 × 600 × 500 mm |
| Maximum turning diameter | Ø300 mm |
| Machining types | 3, 4, and 5-axis milling; turn-mill |
| Wall thickness | Down to 0.5 mm |
Why specialization matters
Aluminum is not treated as a secondary material
CNCALPARTS focuses exclusively on aluminum, allowing our team to refine processes around thermal expansion, stress release, alloy behavior, and anodizing response.
That focus helps address common risks such as warped thin-walled housings, uneven anodizing colors across large batches, and surface defects caused by improper tool maintenance.
01
Stable thin walls
Process awareness for delicate housings and fine features.
02
Consistent color
Controlled finishing conditions for repeatable anodized appearance.
03
Cleaner surfaces
Tool maintenance and handling protocols reduce cosmetic defects.
04
Production continuity
A focused process foundation for prototypes and production batches.
Quality assurance
Documentation your engineering team can use
Inspection planning begins with a review of critical cosmetic surfaces, drawing requirements, and assembly tolerances.
FAI reporting
Full dimensional reporting before the production run begins.
Metrology
CMM, precision height gauges, micrometers, and surface roughness testers.
Process control
Drawing review focused on cosmetic surfaces and assembly tolerances.
Industry applications
Made for products where finish carries value
Robotics and automation
Structural components combining strength with a clean finished appearance.
Electronics and enclosures
Housing units for high-end hardware where fit and finish shape user experience.
Optical equipment
Precision mounts and housings requiring dimensional stability.
Medical and industrial instruments
Parts expected to meet demanding standards for both form and function.
Start your project
Request a quote for your next cosmetic aluminum part
Send STEP or STP files together with detailed PDF drawings and technical requirements for a prompt assessment and quotation.
Email: info@cncalparts.com
Address:
We machine aluminum. Only aluminum.
