Aluminum CNC Machining and Type III Hard Anodizing
Precision Aluminum Parts Built for Hard-Wearing Applications
CNCALPARTS provides precision CNC machining services exclusively for aluminum components, from rapid prototypes to low-volume production and batch manufacturing. Our dedicated process control supports tight tolerances, consistent surfaces, and reliable Type III hard anodizing.
±0.01 mm
Precision tolerance capability
3–5 Axis
Complex aluminum machining
0.5 mm
Minimum wall thickness
Dedicated material focus
Machines, coolant systems, workholding, and finishing processes are optimized for aluminum-only production.
Why specialization matters
Aluminum-focused process control from setup to finish
General machine shops often balance steel, brass, plastics, and other materials with generalized cutting parameters. CNCALPARTS focuses exclusively on aluminum, allowing our tooling, feed rates, clamping methods, and inspection practices to be tuned to its thermal and structural behavior.
Deformation control
Thin-wall parts and large aluminum plates can react to thermal stress and clamping pressure. Our workholding approach is designed to control those effects during machining.
Consistent surfaces
Calibrated tooling and feed rates help minimize chatter and achieve a surface roughness of Ra 0.8–3.2 μm directly from the machine.
Tolerance reliability
Internal stresses are managed throughout production so components can remain within ±0.01 mm precision requirements during and after machining.
Surface engineering

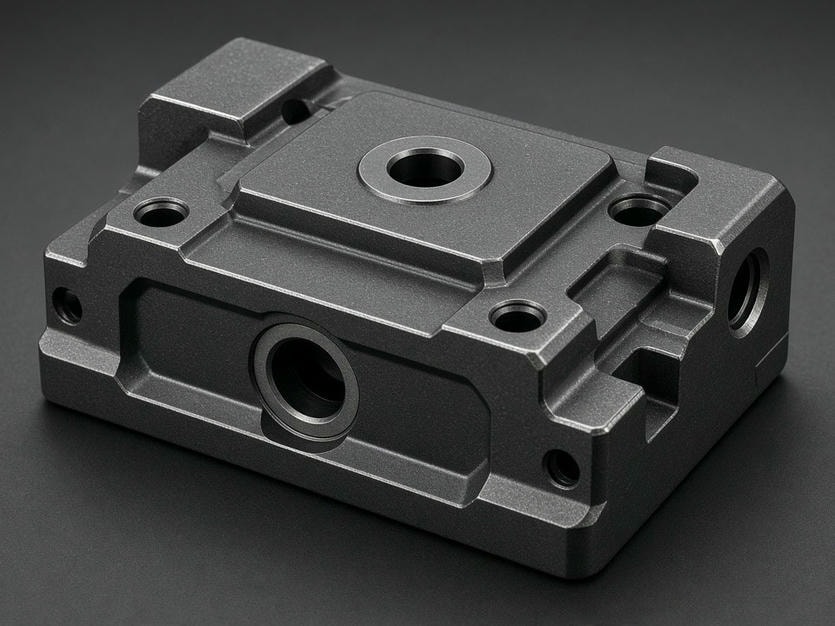

Type III hard anodizing for demanding aluminum components
Type III hard anodizing creates a dense, thick aluminum oxide layer that is significantly harder than standard decorative anodizing. It is selected when a component needs increased surface hardness, strong wear resistance, and a durable finish for repeated use.
Design principle
Treat the coating as part of the final dimensional condition, not as a cosmetic layer added after the design is complete.
Dimensional change
Plan for penetration and build-up
Unlike paint or thin-film coatings, hard anodizing changes the original aluminum surface in two directions:
Penetration
Part of the coating grows into the aluminum substrate.
Build-up
The remaining coating grows outward from the original surface.
Example
With a specified 50 μm coating, approximately 25 μm typically penetrates the part and 25 μm adds to the surface per coated surface.
Clearance holes, bores, threads, and other mating features should be adjusted accordingly. Our pre-production engineering review checks these relationships against assembly requirements.
Manufacturing capabilities
Equipment and inspection aligned to precision aluminum work
Our Shenzhen facility supports 3-axis, 4-axis, and 5-axis CNC machining for complex geometries, deep pockets, and high-precision components.
| Capability | Typical range |
|---|---|
| Materials | Aluminum alloys only: 6061, 6063, 6082, 7075, 2024, 5052, 5083 |
| CNC milling | 3-axis, 4-axis, 5-axis |
| CNC turning | CNC turning and turn-mill machining |
| Maximum milling size | 1000 × 600 × 500 mm |
| Maximum turning diameter | Ø300 mm |
| Machining tolerance | General ±0.05 mm; precision down to ±0.01 mm |
| Surface roughness | Ra 0.8–3.2 μm |
| Minimum wall thickness | 0.5 mm |
| Surface finishes | Type III hard anodizing, clear or color anodizing, bead blasting, powder coating |
| Inspection | CMM, height gauge, micrometer, surface roughness tester |
Production support
A production path from first prototype to repeatable batches
We understand that a one-off prototype and a 500-piece production run require different priorities. The same aluminum-only focus is applied at each stage, with process decisions matched to your project volume.
Prototypes
Fast setup and evaluationWe prioritize fast setups and design evaluation so you can prove the concept, review fit, and identify manufacturing improvements before full-scale production.
Batch production
500+ piecesFor production batches, we focus on stable processes, repeatable workholding, and consistent inspection reports so every part matches the approved first article.
Aluminum only means controlled finishing
Our machines, coolant systems, and finishing lines remain free from cross-contamination with other metals, supporting consistent anodizing results.
Quality assurance
Inspection begins before the first chip is cut
Every project receives a technical review of drawings and 3D models before production. We analyze critical dimensions, tolerance stacks, coating allowances, and assembly requirements so Type III hard anodizing is considered in the manufacturing plan.
Our inspection team uses CMMs, thread gauges, bore gauges, and surface roughness testers to verify parts against your specifications. Dimensional Inspection Reports and First Article Reports are available upon request.
What we review
- ✓Critical dimensions and precision tolerances
- ✓Clearance holes, bores, threads, and mating features
- ✓Coating thickness and dimensional change allowances
- ✓Material grade and required surface finish
- ✓Inspection reports and first article requirements
Common engineering questions
Type III hard anodizing considerations
How does Type III hard anodizing affect part dimensions? +
The coating grows partly into the aluminum and partly outward from the original surface. As a typical planning rule, approximately 50% of the coating thickness penetrates and 50% builds up. A specified 50 μm coating therefore adds approximately 25 μm per coated surface.
Which features need special allowance? +
Clearance holes, bores, threads, and other precision mating features should be reviewed. Our pre-production engineering check evaluates the coating allowance against your assembly fit and tolerance stack.
What industries can use these components? +
Our aluminum CNC machining and finishing services support robotics, optical equipment, industrial automation, electronics, and industrial equipment applications that require consistent, high-quality components.
Request a quote
Send your aluminum part requirements to our engineering team
We partner with companies in robotics, automation, electronics, and industrial equipment that require reliable aluminum CNC machined parts and Type III hard anodizing.
Email: info@cncalparts.com
Address:
We machine aluminum. Only aluminum.
Prepare for a technical review
Please send your 3D models in STEP, STP, or IGES format and your 2D engineering drawings in PDF format. Include the material grade, tolerance requirements, and surface finish specification, including Type III hard anodizing requirements.
