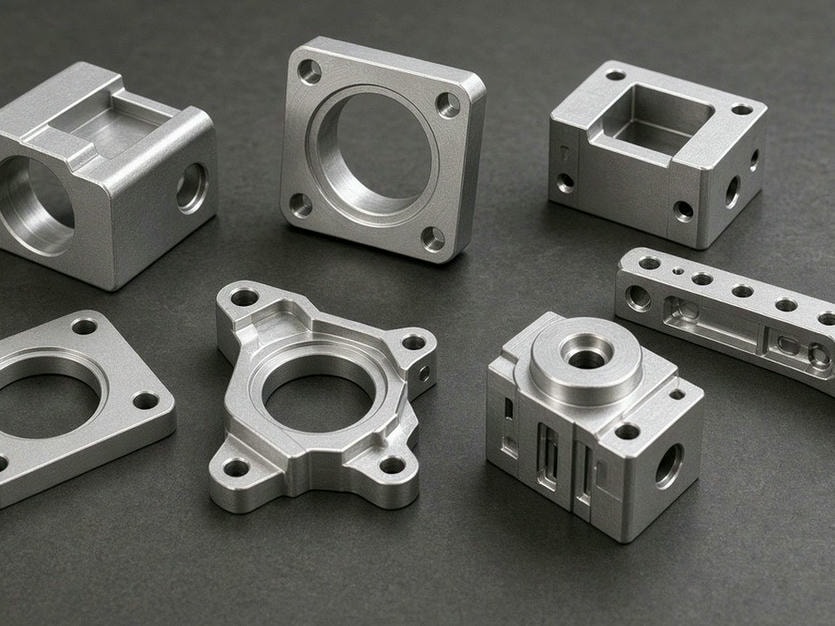

Complex Geometry Machining for Aluminum Components
At CNCALPARTS, we specialize exclusively in aluminum. While general machine shops juggle various materials, we focus our entire engineering and production capacity on the nuances of aluminum alloys. This hyper-focus allows us to master the challenges of complex geometry machining, including high-aspect-ratio features, thin walls, and intricate multi-sided components that standard shops struggle to stabilize.
- Machining Tolerance
- ±0.01 mm
- Min. Wall Thickness
- 0.5 mm
- Axis Configuration
- 3 / 4 / 5-Axis
Precision Engineering for Complex Aluminum Parts
Complex geometry in aluminum requires more than just high-end equipment; it demands a deep understanding of internal stress, thermal expansion, and vibration control. We utilize a combination of 3-axis, 4-axis, and 5-axis machining to produce components that meet rigorous technical specifications.
5-Axis Simultaneous Machining
Ideal for complex contours, impellers, and parts requiring multi-sided access in a single setup to ensure superior positional accuracy.
Thin-Wall & Deep-Pocket Machining
We employ specialized workholding and optimized cutting strategies to mitigate chatter and deformation in thin-walled housings and large-scale cooling plates.
Precision Hole & Thread Systems
Capability for bores and holes down to Ø1.0 mm with tolerances as tight as ±0.01 mm.
Complex Feature Integration
Efficiently managing oblique holes, internal radii, and interlocking geometries that require advanced CNC programming and multi-plane indexing.
| Feature | Precision Capability |
|---|---|
| Machining Tolerance | Down to ±0.01 mm |
| Flatness / Parallelism | Down to 0.02 mm |
| Surface Roughness | Ra 0.8–3.2 μm |
| Min. Wall Thickness | 0.5 mm |
| Axis Configuration | 3-Axis, 4-Axis, 5-Axis |
Why Specialized Aluminum Focus Matters
Aluminum is prone to distortion during material removal. By specializing only in aluminum—such as 6061, 7075, 2024, and 5052—we have optimized our tool path strategies, feed rates, and coolant management to maintain dimensional stability from the first prototype to the final production batch.
When you partner with us for complex components, you benefit from the following engineering advantages.
-
1
Stress Management
Engineered roughing passes to release internal material stress before final finishing.
-
2
Anodizing-Ready Surfaces
We understand the relationship between machining finish and anodizing quality, ensuring consistent results for clear, black, hard, or color-anodized parts.
-
3
Repeatability
Whether you need 10 prototypes or 500 production units, our stable, aluminum-dedicated processes ensure every part meets the original design intent.
Industries We Serve
We support technology-driven industries that require high-performance, lightweight aluminum components.
Robotics & Automation
Complex structural frames and effector components.
Optical Equipment
Precision housings and mounts requiring high positional accuracy.
Electronics
Heat sinks and enclosures with complex thermal management geometry.
Industrial Equipment
High-tolerance manifolds and functional machine parts.
Quality Control & Inspection
We treat quality as a core engineering requirement. Every complex component undergoes a rigorous inspection protocol.
-
Full Dimensional Verification
Using CMM, height gauges, and micrometers.
-
Process Documentation
First Article Inspection (FAI) and dimensional reports provided per project requirements.
-
Surface Integrity
Verification of roughness and post-anodizing finish standards.
Request a Quote
We work directly with engineers and procurement professionals who value technical communication and reliable production. If you have a project involving complex aluminum geometries—from housings and enclosures to intricate 5-axis structural parts—we are ready to review your files.
We machine aluminum. Only aluminum.
- info@cncalparts.com
- Phone
- Address
Shenzhen, China
Upload your STEP, STP, or SLDPRT files along with your technical drawings.
