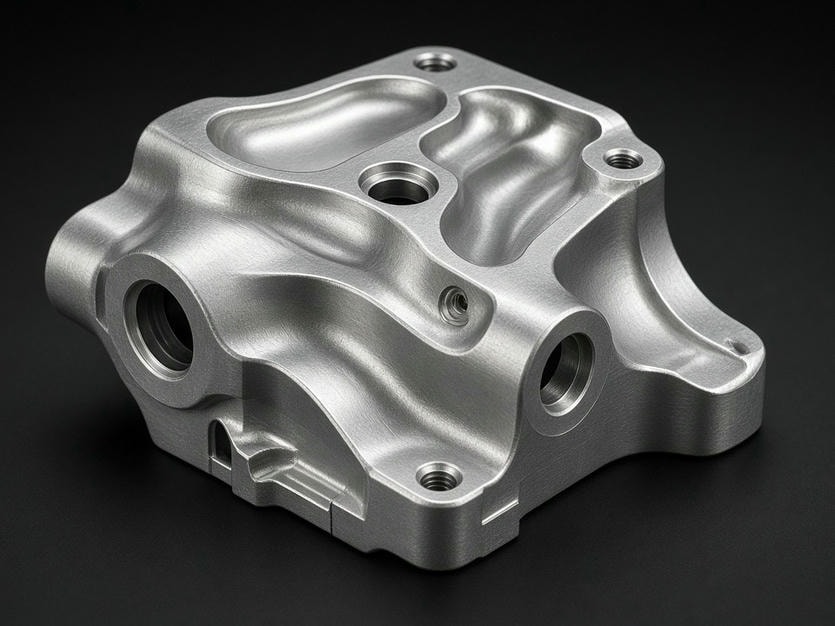

5-axis CNC machined complex aluminum component

Dedicated Aluminum Manufacturing

We do not process steel, titanium, or plastics. By limiting our production to aluminum alloys—including 6061, 7075, 5052, and 6082—we have optimized our tooling, workholding, and thermal management specifically for this material.

Tight Tolerances

Our aluminum-only focus lets us hold tolerances down to ±0.01 mm on demanding features and mating surfaces.

Stress & Deformation Control

We actively manage internal stress and deformation common in thin-wall aluminum components throughout machining.

5-Axis Design Guide for Complex Aluminum Parts

5-axis machining is not just for complex geometries; it is a tool for increasing dimensional accuracy and reducing production costs. When designing for our 5-axis systems, consider the following principles.

Integrated Features

Utilize the 5-axis capability to machine multi-sided features in a single setup. This eliminates the tolerance stack-up associated with flipping parts between multiple operations.

Tool Accessibility

Use 5-axis milling to access deep pockets or inclined holes that are unreachable with 3-axis systems. Ensure that internal radii are compatible with standard tool diameters to minimize custom tooling costs.

Reduced Workholding

By orienting the part to the tool, we can machine complex shapes with minimal clamping. This is critical for thin-wall enclosures where excessive clamping force can induce part distortion.

Surface Finish Control

Continuous 5-axis toolpaths provide superior surface finish on contoured surfaces compared to the "stepped" results of 3-axis indexing.
